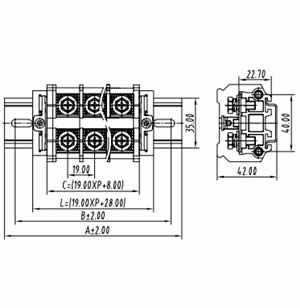

Pitch(间距) | 19.00mm | ||
Approval(认证) | ![]() |
||
Rated voltage(电压) | 600V | ||
rated current(电流) | 65A | ||
wire range(线径) | 18-06AWG | ||
PCB hole Dia(PCB直径) | |||
Screw (螺丝) | M6.0 | ||
Housing Material(本质材料) |
PC |
Poles(级数) | Model(型号) |
02 | TB60DCK-1120-02P |
... | ... |
12 | TB60DCK-1120-12P |
PS: 仅供参考,以公司规定的具体数据为准!
