Pitch(间距) | 5.08mm | ||
Approval(认证) | ![]() |
||
Rated voltage(电压) | 300V | ||
rated current(电流) | 6A | ||
wire range(线径) | 18AWG | ||
PCB hole Dia(PCB直径) | |||
Screw (螺丝) | |||
Housing Material(本质材料) |
Poles(级数) | Model(型号) |
02 | TQS-A-2.8-02P |
... | ... |
17 | TQS-A-2.8-17P |

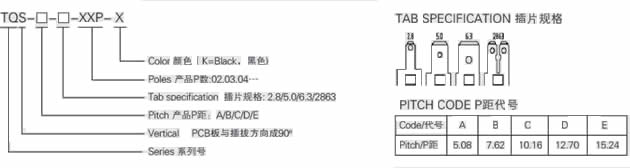

例如:TQQ-A-2.8-02P-K表示为TQ系列,插拔方向与PCB板成90°(字母"S"),间距为5.08(字母"A"),插片规格2.8,产品P数为2P,颜色为黑色(字母"k")
PS: 仅供参考,以公司规定的具体数据为准!
