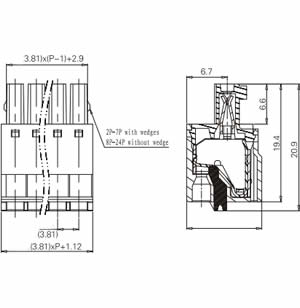

Pitch(间距) | 3.81mm | ||
Approval(认证) | ![]() |
||
Rated voltage(电压) | 300V | ||
rated current(电流) | 12A | ||
wire range(线径) | 24-12AWG | ||
PCB hole Dia(PCB直径) | |||
Screw (螺丝) | |||
Housing Material(本质材料) |
Poles(级数) | Model(型号) |
02 | TLPS-101V-02P |
.. | .. |
24 | TLPS-101V-24P |
PS: 仅供参考,以公司规定的具体数据为准!
