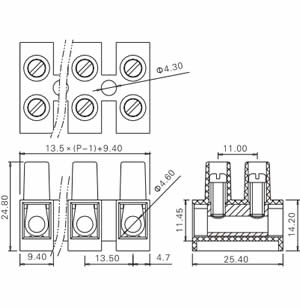

Pitch(间距) | 13.50mm | ||
Approval(认证) | ![]() |
![]() |
![]() |
Rated voltage(电压) | 300V | 750V | 750V |
rated current(电流) | 50A | 76A | |
wire range(线径) | 20-08AWG | 6.0-16.0mm² | 16.00mm² |
PCB hole Dia(PCB直径) | |||
Screw (螺丝) | M4 | ||
Housing Material(本质材料) |
Poles(级数) | Model(型号) |
02 | TLB-400-02P |
.. | .. |
12 | TLB-400-12P |
PS: 仅供参考,以公司规定的具体数据为准!
