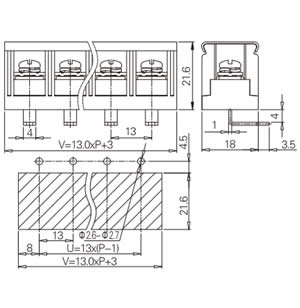

Pitch(间距) | 13.00mm | ||
Approval(认证) | ![]() |
||
Rated voltage(电压) | 600V | ||
rated current(电流) | 40A | ||
wire range(线径) | 24-08AWG | ||
PCB hole Dia(PCB直径) | Φ2.6-2.7mm | ||
Screw (螺丝) | M4 | ||
Housing Material(本质材料) |
Poles(级数) | Model(型号) |
02 | B130C-03-02P |
.. | .. |
24 | B130C-03-24P |
PS: 仅供参考,以公司规定的具体数据为准!
